The Wiscasset 36x36: Timber Frame Plan & Cut Sheet Package

Our Cut Sheet Package includes fully detailed drawings of each unique timber, providing everything you need to cut and assemble this highly versatile timber frame structure.

Frame Specifications:

• Dimensions: 36' wide × 36' long (outside-of-post to outside-of-post)
• First Floor: 1,296 square feet
• Second Floor: 800 square feet
• Kneewall Height: Varies by configuration
• Roof Pitch: 12:12 (main structure)
• Roof Pitch: 3:12 (shed addition)
• Total Height: 24' at peak

One of our most popular designs, The Wiscasset combines a classic timber frame with a practical shed-roof addition that dramatically expands your living space. The versatile 12' shed extension has been used as a kitchen, master bedroom suite, mudroom, living room, office, or workshop space. This flexible design provides significantly more square footage while maintaining a compact, efficient footprint, perfect for those who want a generous space in a compact footprint.

What's Included:

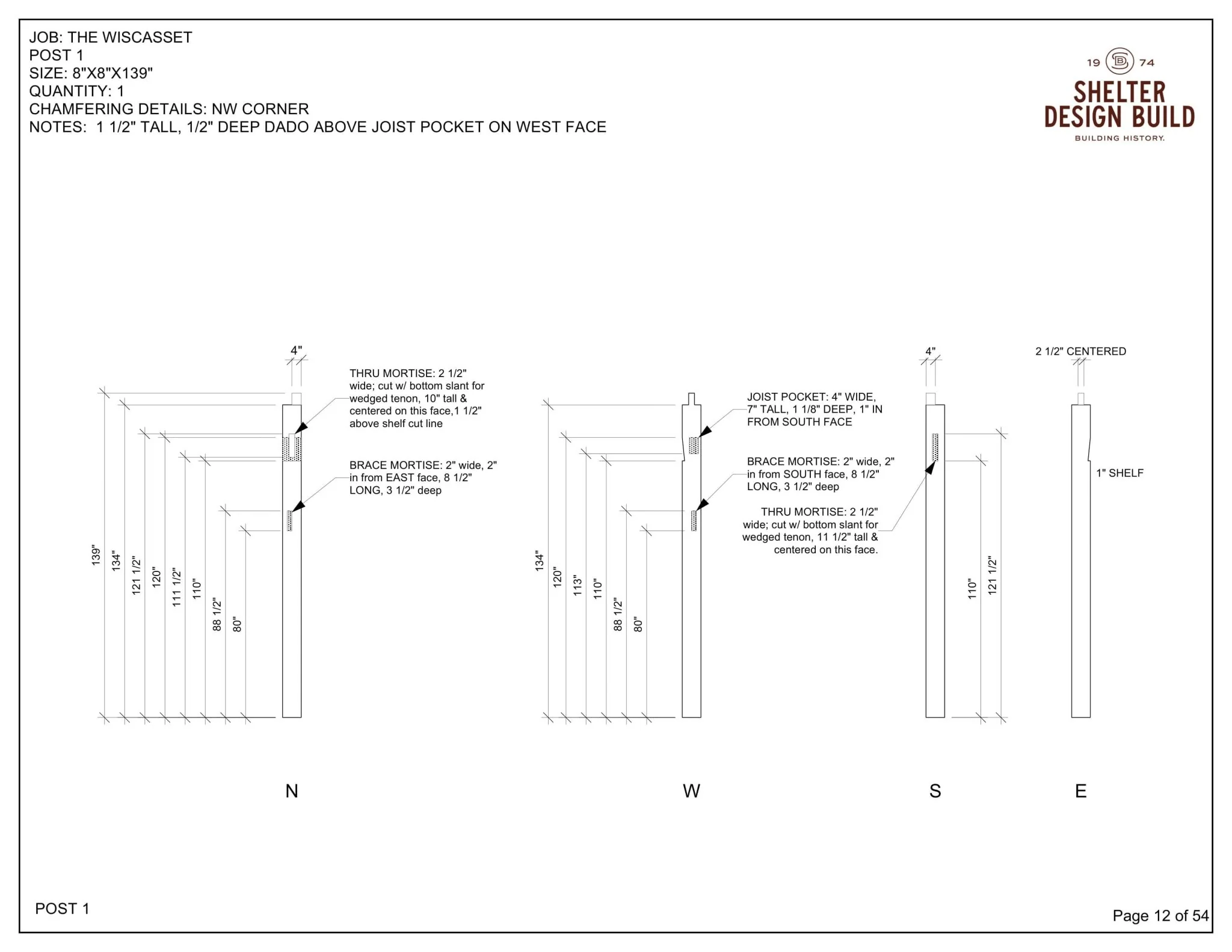

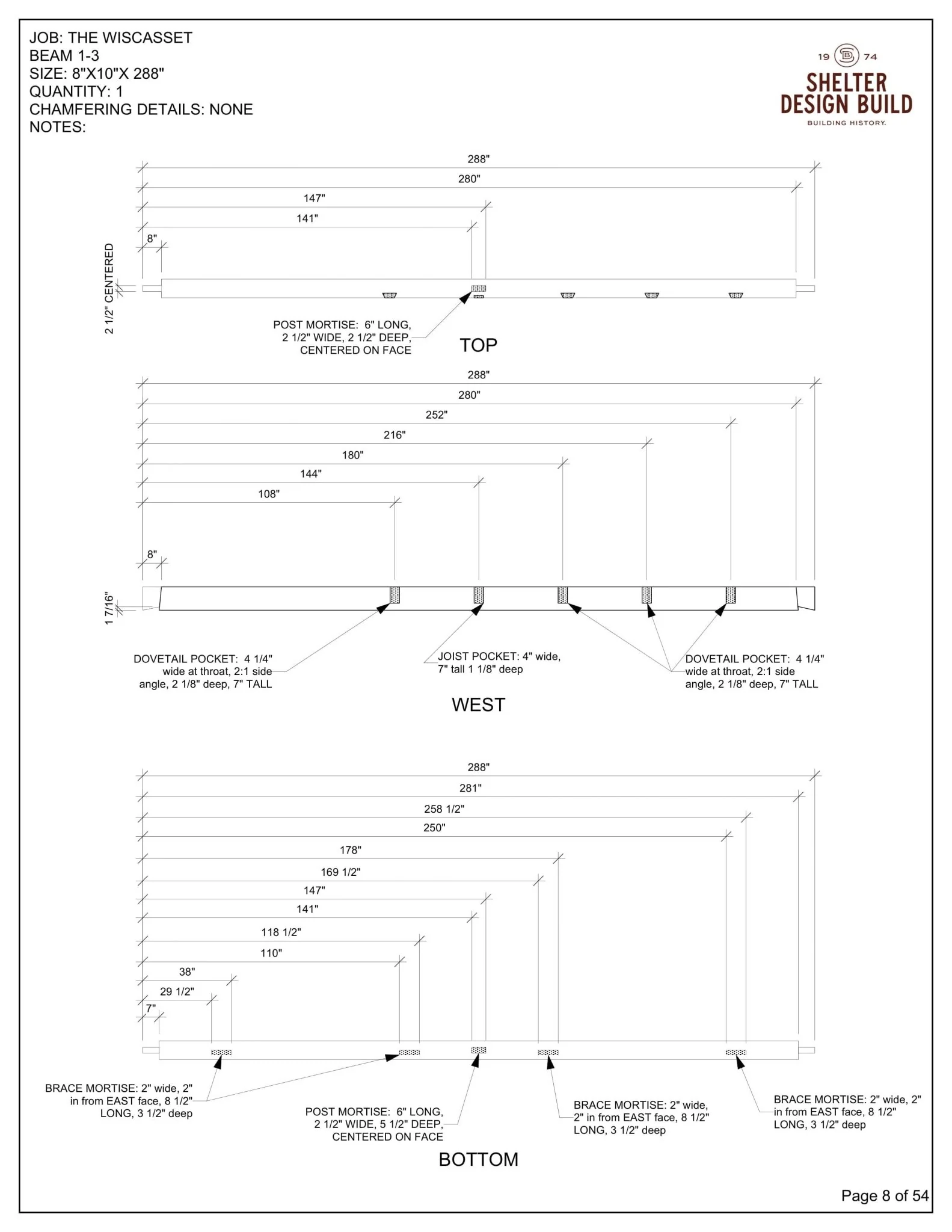

• Detailed cut sheet for each timber with all joinery specifications

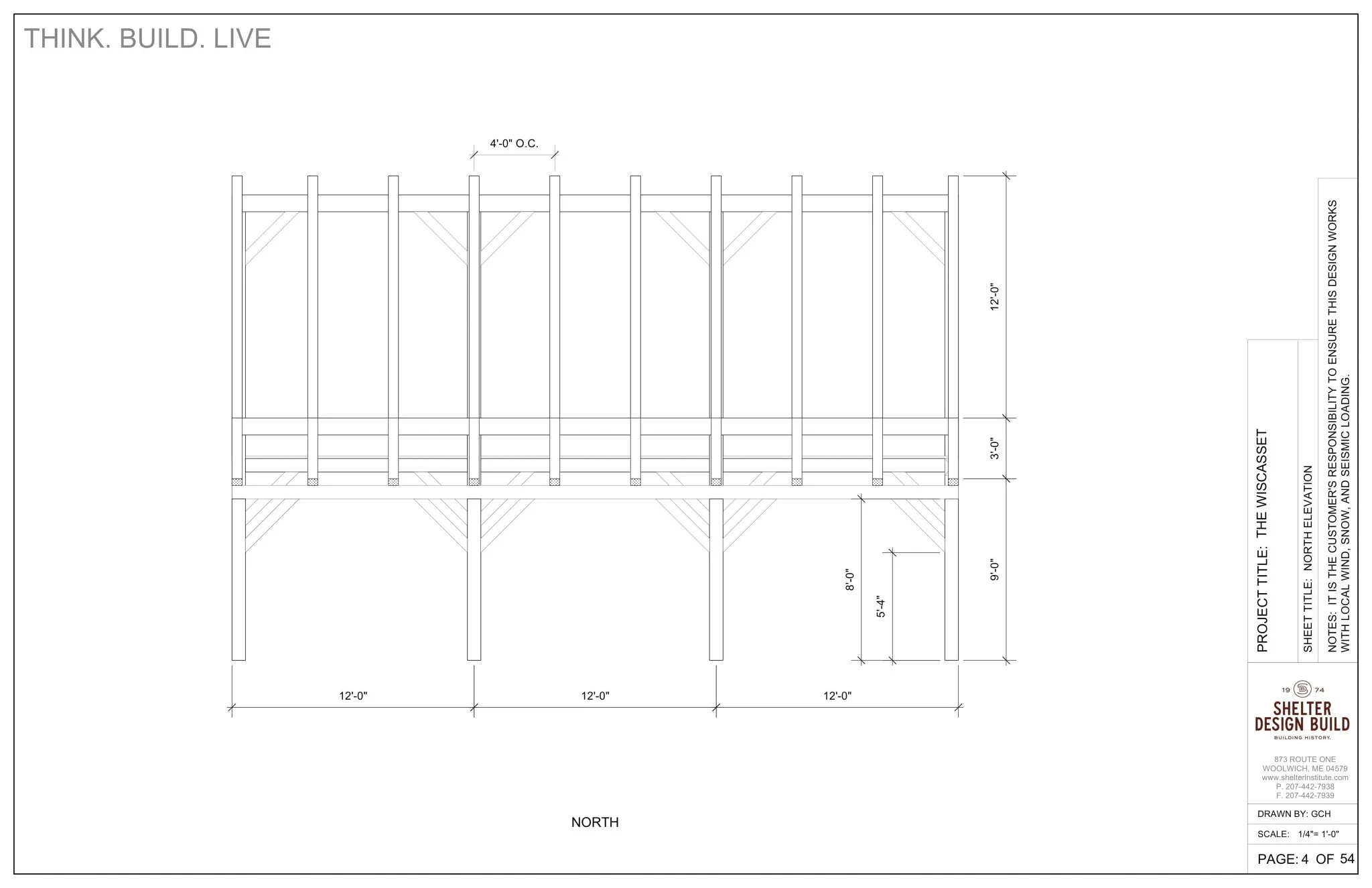

• Elevation framing plans (North, South, East, West)
• 3D rendering
• Complete lumber list
• Fasteners list with specifications
• Peg locations
• Joint details

If you've attended one of our in-person classes or completed our online course, you know the level of precision and detail you can expect in this package.

Custom Designs Available: If this building isn't exactly what you're looking for, our design team is happy to create a custom design tailored to your needs.

Delivery: Upon purchase, you'll receive both a PDF for immediate printing and a hard copy via mail.
